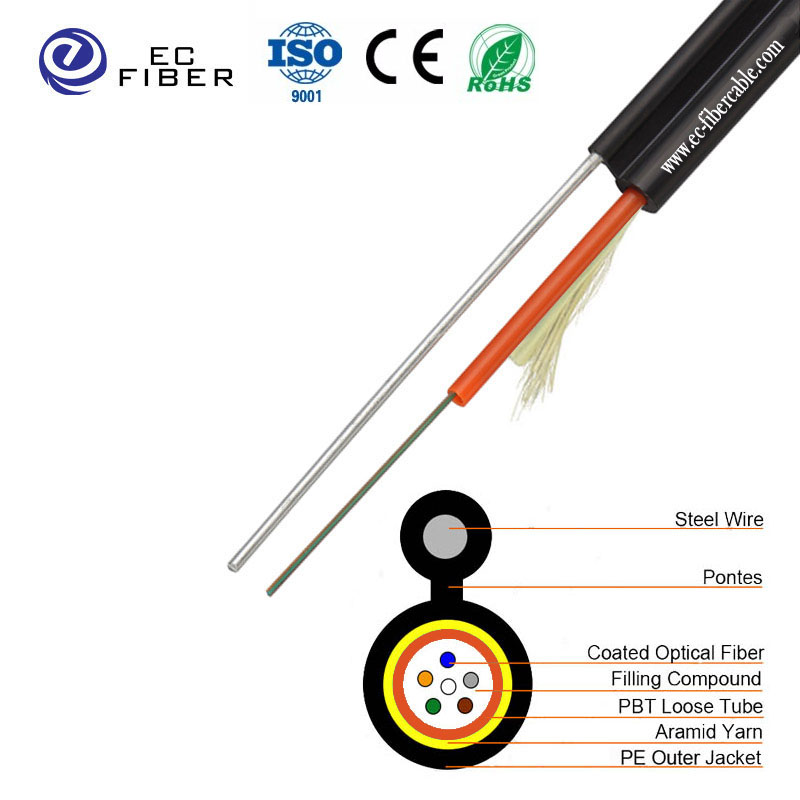

GYXTC8Y 4 core optical fiber cable outdoor fiber optic cable optic fiber and cable 4f fiber optic cable
Quotation process: After the customer provides specific needs, we will reply to the customer within ten minutes.
Procurement process: product inquiry - contract signing - advance payment - order production - transportation and receipt - after-sales service.
We are 7*24h awaiting for your inquiry,since you sent an email to us,we'll reply immediately,won't you have a try? We look forward to your inquiry.
Email：info@ec-fibercable.com
Whatsapp：+8618075108880
Fiber color code:
No | 1 | 2 | 3 | 4 | 5 | 6 |
Color | Blue | Orange | Green | Brown | Slate | White |
No | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Black | Yellow | Violet | Pink | Aqua |
No | 13 | 14 | 15 | 16 | 17 | 18 |
Color | Blue+R | Orange+R | Green+R | Brown+R | Slate+R | White+R |
No | 19 | 20 | 21 | 22 | 23 | 24 |
Color | Red+R | Natural+R | Yellow+R | Violet+R | Pink+R | Aqua+R |
* “R” means Ring Mark.
Cable structure and parameter:
| Fiber number | Tube Diameter | Messenger steel wire diameter | Sheath thickness (nominal*) | Diameter W*H (Nominal*) | Weight (Approx.) |
| mm | mm | mm | mm | kg/km | |
| 2~12 | 3 | 1.6mm | 1 | 5.0×10.1 | 45 |
| 12~24 | 3.6 | 1.6mm | 1 | 5.6×10.7 | 50 |
* The nominal sheath thickness may vary by ±0.2mm.
** The nominal outer diameter and height may vary by ±0.4mm.
| Optical Characteristics: | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A,B,C) | B1.1:Conventional fiber | ||
| G.652D | B2: Zero dispersion shifted | |||
| G.655 | B1.2 :Cut-off wavelength shifted | |||
| G.657(A1,A2 ,B3) | B4: Main technical data for positive dispersion shifted single-mode fiber | |||
Package Details:
Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for container
Our Professional International Business Documentation Team And After-sales Service
Our team members who are familiar with the customs policies of various countries and the operation of letters of credit can provide correct and professional support for paper work documents,
Let customers go smoothly in the process of customs clearance of commercial documents, and even help customers save costs. 7 days * 24 hours online service for you, our products are all qualified tests,
To provide you with professional testing reports and certification, quality assurance can be based on your needs, we accept any third-party quality testing.
OUR PARTNERS
1.Are you the real manufacturer?
We are the real manufacturer with 15 year’s history.
2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
